Schema documentation for component ms:addressSet

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:addressSet

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Links to a set of elements that describe the full address of a person or organization (i.e. including street address, zip code, etc.)

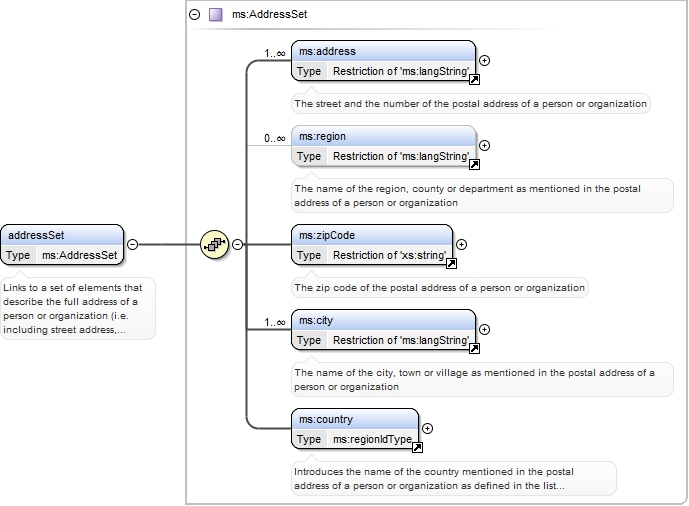

Diagram

Type

ms:AddressSet

Properties

content

complex

Used by

Elements	ms:Group, ms:Organization, ms:Person
Complex Types	ms:Affiliation, ms:Division

Model

ms:address+ , ms:region* , ms:zipCode , ms:city+ , ms:country

Children

ms:address, ms:city, ms:country, ms:region, ms:zipCode

Instance

<ms:addressSet xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:address xml:lang="">{1,unbounded}</ms:address>
  <ms:region xml:lang="">{0,unbounded}</ms:region>
  <ms:zipCode>{1,1}</ms:zipCode>
  <ms:city xml:lang="">{1,unbounded}</ms:city>
  <ms:country>{1,1}</ms:country>
</ms:addressSet>

Source

<xs:element name="addressSet" type="ms:AddressSet">
  <xs:annotation>
    <xs:documentation xml:lang="en">Links to a set of elements that describe the full address of a person or organization (i.e. including street address, zip code, etc.)</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/addressSet</identifier>
      <label xml:lang="en">address</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
