Schema documentation for component ms:linkToOtherMedia

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:linkToOtherMedia

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Describes the linking between different media parts of a resource (how they interact with or link to each other)

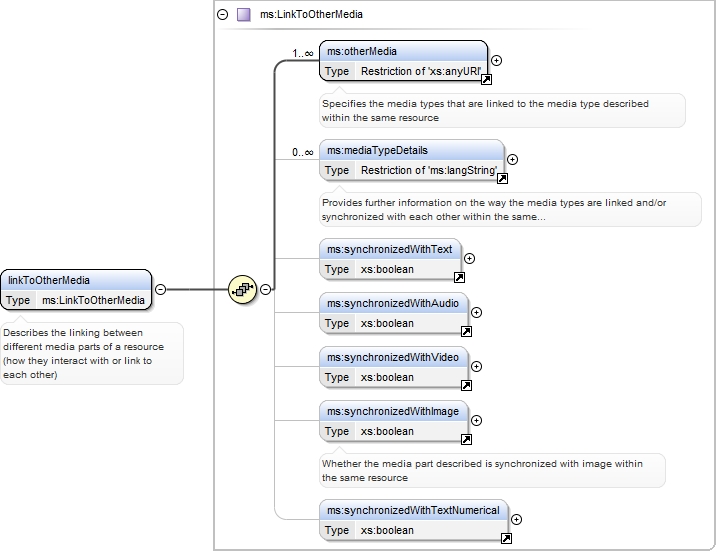

Diagram

Type

ms:LinkToOtherMedia

Properties

content

complex

Used by

Complex Types

ms:CorpusAudioPart, ms:CorpusImagePart, ms:CorpusTextNumericalPart, ms:CorpusTextPart, ms:CorpusVideoPart, ms:LanguageDescriptionImagePart, ms:LanguageDescriptionTextPart, ms:LanguageDescriptionVideoPart

Model

ms:otherMedia+ , ms:mediaTypeDetails* , ms:synchronizedWithText{0,1} , ms:synchronizedWithAudio{0,1} , ms:synchronizedWithVideo{0,1} , ms:synchronizedWithImage{0,1} , ms:synchronizedWithTextNumerical{0,1}

Children

ms:mediaTypeDetails, ms:otherMedia, ms:synchronizedWithAudio, ms:synchronizedWithImage, ms:synchronizedWithText, ms:synchronizedWithTextNumerical, ms:synchronizedWithVideo

Instance

<ms:linkToOtherMedia xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:otherMedia>{1,unbounded}</ms:otherMedia>
  <ms:mediaTypeDetails xml:lang="">{0,unbounded}</ms:mediaTypeDetails>
  <ms:synchronizedWithText>{0,1}</ms:synchronizedWithText>
  <ms:synchronizedWithAudio>{0,1}</ms:synchronizedWithAudio>
  <ms:synchronizedWithVideo>{0,1}</ms:synchronizedWithVideo>
  <ms:synchronizedWithImage>{0,1}</ms:synchronizedWithImage>
  <ms:synchronizedWithTextNumerical>{0,1}</ms:synchronizedWithTextNumerical>
</ms:linkToOtherMedia>

Source

<xs:element name="linkToOtherMedia" type="ms:LinkToOtherMedia">
  <xs:annotation>
    <xs:documentation xml:lang="en">Describes the linking between different media parts of a resource (how they interact with or link to each other)</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/linkToOtherMedia</identifier>
      <label xml:lang="en">link to other media</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
