Schema documentation for component ms:LexicalConceptualResourceImagePart

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:LexicalConceptualResourceImagePart

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

A part (or whole set of) a lexical/conceptual resource that consists of images (e.g.,  a set of images used for a lexicon)

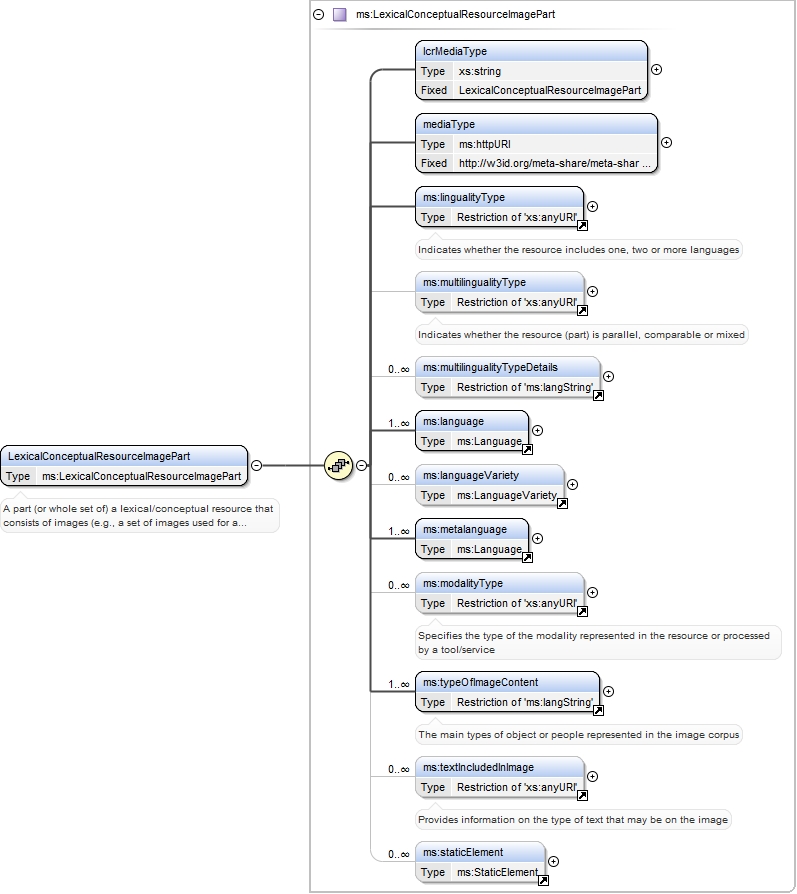

Diagram

Type

ms:LexicalConceptualResourceImagePart

Properties

content

complex

Used by

Complex Type

ms:LexicalConceptualResourceMediaPart

Model

ms:lcrMediaType , ms:mediaType , ms:lingualityType , ms:multilingualityType{0,1} , ms:multilingualityTypeDetails* , ms:language+ , ms:languageVariety* , ms:metalanguage+ , ms:modalityType* , ms:typeOfImageContent+ , ms:textIncludedInImage* , ms:staticElement*

Children

ms:language, ms:languageVariety, ms:lcrMediaType, ms:lingualityType, ms:mediaType, ms:metalanguage, ms:modalityType, ms:multilingualityType, ms:multilingualityTypeDetails, ms:staticElement, ms:textIncludedInImage, ms:typeOfImageContent

Instance

<ms:LexicalConceptualResourceImagePart xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:lcrMediaType>{1,1}</ms:lcrMediaType>
  <ms:mediaType>{1,1}</ms:mediaType>
  <ms:lingualityType>{1,1}</ms:lingualityType>
  <ms:multilingualityType>{0,1}</ms:multilingualityType>
  <ms:multilingualityTypeDetails xml:lang="">{0,unbounded}</ms:multilingualityTypeDetails>
  <ms:language>{1,unbounded}</ms:language>
  <ms:languageVariety>{0,unbounded}</ms:languageVariety>
  <ms:metalanguage>{1,unbounded}</ms:metalanguage>
  <ms:modalityType>{0,unbounded}</ms:modalityType>
  <ms:typeOfImageContent xml:lang="">{1,unbounded}</ms:typeOfImageContent>
  <ms:textIncludedInImage>{0,unbounded}</ms:textIncludedInImage>
  <ms:staticElement>{0,unbounded}</ms:staticElement>
</ms:LexicalConceptualResourceImagePart>

Source

<xs:element name="LexicalConceptualResourceImagePart" type="ms:LexicalConceptualResourceImagePart">
  <xs:annotation>
    <xs:documentation xml:lang="en">A part (or whole set of) a lexical/conceptual resource that consists of images (e.g., a set of images used for a lexicon)</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/LexicalConceptualResourceImagePart</identifier>
      <label xml:lang="en">Lexical/Conceptual resource image part</label>
      <subclassOf>http://w3id.org/meta-share/meta-share/LexicalConceptualResourceMediaPart</subclassOf>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
