Schema documentation for component ms:affiliation

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:affiliation

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Introduces information on an organization to whom the person is affiliated and the data relevant to this relation (i.e. position, email , etc.)

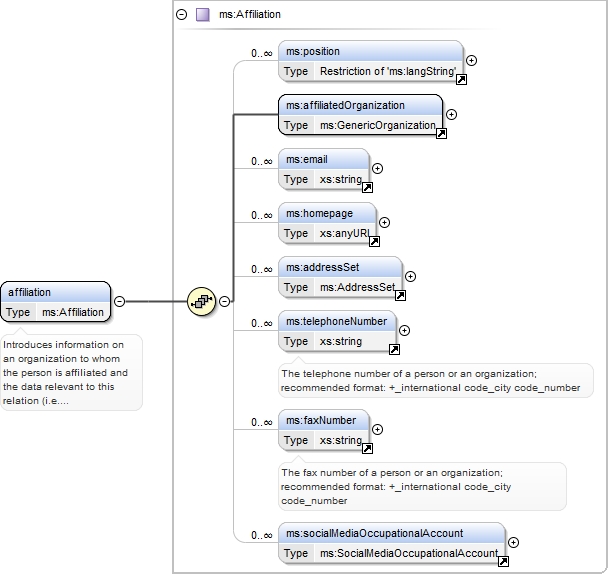

Diagram

Type

ms:Affiliation

Properties

content

complex

Used by

Element

ms:Person

Model

ms:position* , ms:affiliatedOrganization , ms:email* , ms:homepage* , ms:addressSet* , ms:telephoneNumber* , ms:faxNumber* , ms:socialMediaOccupationalAccount*

Children

ms:addressSet, ms:affiliatedOrganization, ms:email, ms:faxNumber, ms:homepage, ms:position, ms:socialMediaOccupationalAccount, ms:telephoneNumber

Instance

<ms:affiliation xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:position xml:lang="">{0,unbounded}</ms:position>
  <ms:affiliatedOrganization>{1,1}</ms:affiliatedOrganization>
  <ms:email>{0,unbounded}</ms:email>
  <ms:homepage>{0,unbounded}</ms:homepage>
  <ms:addressSet>{0,unbounded}</ms:addressSet>
  <ms:telephoneNumber>{0,unbounded}</ms:telephoneNumber>
  <ms:faxNumber>{0,unbounded}</ms:faxNumber>
  <ms:socialMediaOccupationalAccount ms:socialMediaOccupationalAccountType="">{0,unbounded}</ms:socialMediaOccupationalAccount>
</ms:affiliation>

Source

<xs:element name="affiliation" type="ms:Affiliation">
  <xs:annotation>
    <xs:documentation xml:lang="en">Introduces information on an organization to whom the person is affiliated and the data relevant to this relation (i.e. position, email , etc.)</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/affiliation</identifier>
      <label xml:lang="en">affiliation</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
