Schema documentation for component ms:audioFormat

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:audioFormat

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Specifies the features of the format of the audio part of a language resource

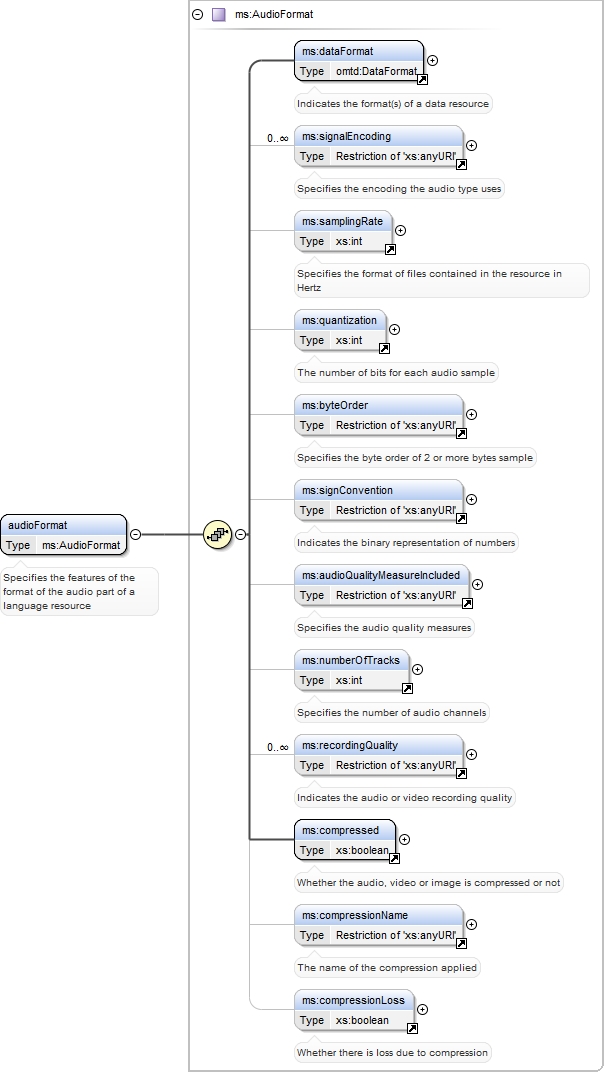

Diagram

Type

ms:AudioFormat

Properties

content

complex

Used by

Complex Type

ms:DistributionAudioFeature

Model

ms:dataFormat , ms:signalEncoding* , ms:samplingRate{0,1} , ms:quantization{0,1} , ms:byteOrder{0,1} , ms:signConvention{0,1} , ms:audioQualityMeasureIncluded{0,1} , ms:numberOfTracks{0,1} , ms:recordingQuality* , ms:compressed , ms:compressionName{0,1} , ms:compressionLoss{0,1}

Children

ms:audioQualityMeasureIncluded, ms:byteOrder, ms:compressed, ms:compressionLoss, ms:compressionName, ms:dataFormat, ms:numberOfTracks, ms:quantization, ms:recordingQuality, ms:samplingRate, ms:signConvention, ms:signalEncoding

Instance

<ms:audioFormat xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:dataFormat>{1,1}</ms:dataFormat>
  <ms:signalEncoding>{0,unbounded}</ms:signalEncoding>
  <ms:samplingRate>{0,1}</ms:samplingRate>
  <ms:quantization>{0,1}</ms:quantization>
  <ms:byteOrder>{0,1}</ms:byteOrder>
  <ms:signConvention>{0,1}</ms:signConvention>
  <ms:audioQualityMeasureIncluded>{0,1}</ms:audioQualityMeasureIncluded>
  <ms:numberOfTracks>{0,1}</ms:numberOfTracks>
  <ms:recordingQuality>{0,unbounded}</ms:recordingQuality>
  <ms:compressed>{1,1}</ms:compressed>
  <ms:compressionName>{0,1}</ms:compressionName>
  <ms:compressionLoss>{0,1}</ms:compressionLoss>
</ms:audioFormat>

Source

<xs:element name="audioFormat" type="ms:AudioFormat">
  <xs:annotation>
    <xs:documentation xml:lang="en">Specifies the features of the format of the audio part of a language resource</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/audioFormat</identifier>
      <label xml:lang="en">audio format</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
