Schema documentation for component ms:imageFormat

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:imageFormat

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Provides information on each of the format(s) of the image part of a resource

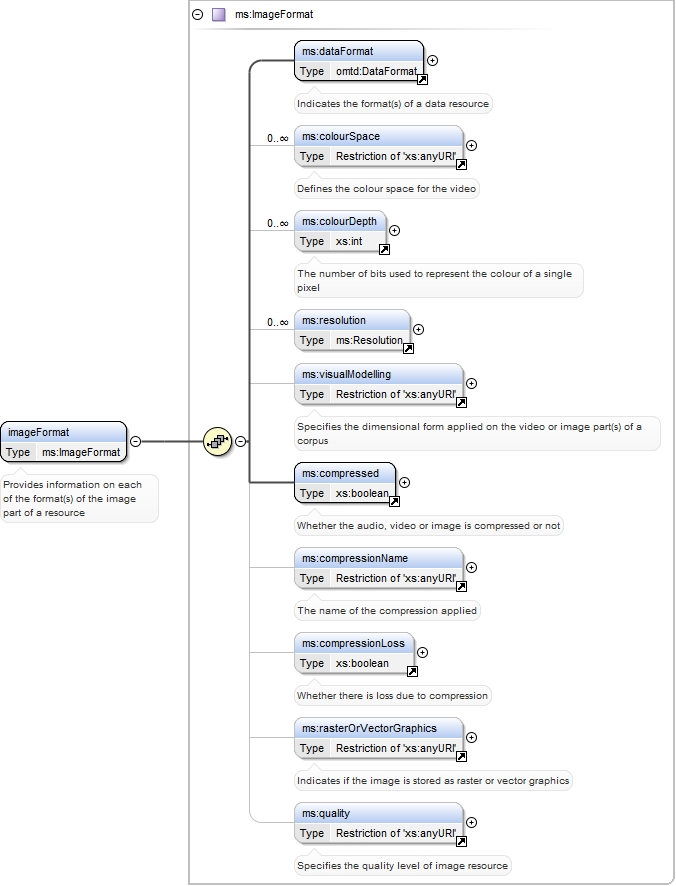

Diagram

Type

ms:ImageFormat

Properties

content

complex

Used by

Complex Type

ms:DistributionImageFeature

Model

ms:dataFormat , ms:colourSpace* , ms:colourDepth* , ms:resolution* , ms:visualModelling{0,1} , ms:compressed , ms:compressionName{0,1} , ms:compressionLoss{0,1} , ms:rasterOrVectorGraphics{0,1} , ms:quality{0,1}

Children

ms:colourDepth, ms:colourSpace, ms:compressed, ms:compressionLoss, ms:compressionName, ms:dataFormat, ms:quality, ms:rasterOrVectorGraphics, ms:resolution, ms:visualModelling

Instance

<ms:imageFormat xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:dataFormat>{1,1}</ms:dataFormat>
  <ms:colourSpace>{0,unbounded}</ms:colourSpace>
  <ms:colourDepth>{0,unbounded}</ms:colourDepth>
  <ms:resolution>{0,unbounded}</ms:resolution>
  <ms:visualModelling>{0,1}</ms:visualModelling>
  <ms:compressed>{1,1}</ms:compressed>
  <ms:compressionName>{0,1}</ms:compressionName>
  <ms:compressionLoss>{0,1}</ms:compressionLoss>
  <ms:rasterOrVectorGraphics>{0,1}</ms:rasterOrVectorGraphics>
  <ms:quality>{0,1}</ms:quality>
</ms:imageFormat>

Source

<xs:element name="imageFormat" type="ms:ImageFormat">
  <xs:annotation>
    <xs:documentation xml:lang="en">Provides information on each of the format(s) of the image part of a resource</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/imageFormat</identifier>
      <label xml:lang="en">image format</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
