Schema documentation for component ms:parameter

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:parameter

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Introduces a parameter used for running a tool/service

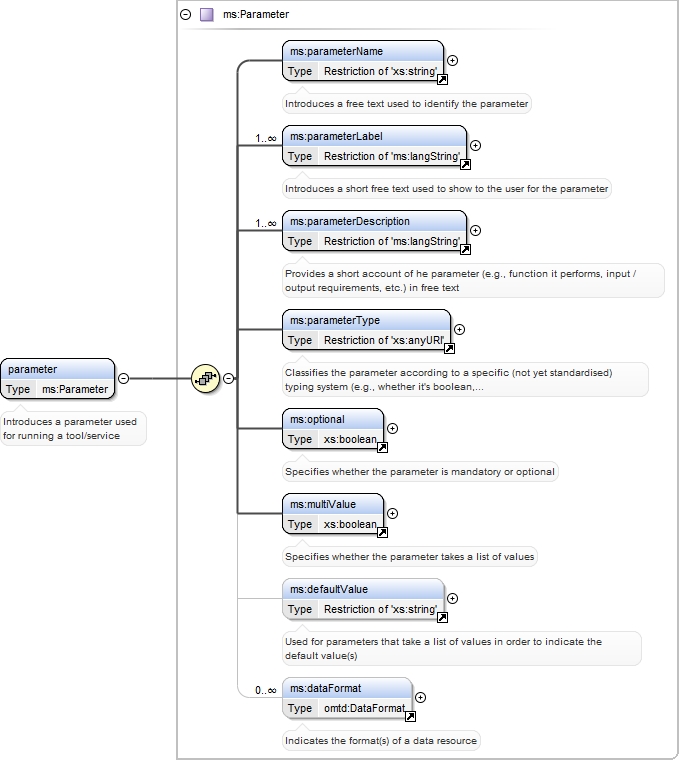

Diagram

Type

ms:Parameter

Properties

content

complex

Used by

Element

ms:ToolService

Model

ms:parameterName , ms:parameterLabel+ , ms:parameterDescription+ , ms:parameterType , ms:optional , ms:multiValue , ms:defaultValue{0,1} , ms:dataFormat*

Children

ms:dataFormat, ms:defaultValue, ms:multiValue, ms:optional, ms:parameterDescription, ms:parameterLabel, ms:parameterName, ms:parameterType

Instance

<ms:parameter xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:parameterName>{1,1}</ms:parameterName>
  <ms:parameterLabel xml:lang="">{1,unbounded}</ms:parameterLabel>
  <ms:parameterDescription xml:lang="">{1,unbounded}</ms:parameterDescription>
  <ms:parameterType>{1,1}</ms:parameterType>
  <ms:optional>{1,1}</ms:optional>
  <ms:multiValue>{1,1}</ms:multiValue>
  <ms:defaultValue>{0,1}</ms:defaultValue>
  <ms:dataFormat>{0,unbounded}</ms:dataFormat>
</ms:parameter>

Source

<xs:element name="parameter" type="ms:Parameter">
  <xs:annotation>
    <xs:documentation xml:lang="en">Introduces a parameter used for running a tool/service</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/parameter</identifier>
      <label xml:lang="en">parameter</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
