Schema documentation for component ms:videoFormat

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:videoFormat

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Groups information on the format(s) of a resource; repeated if parts of the resource are in different formats

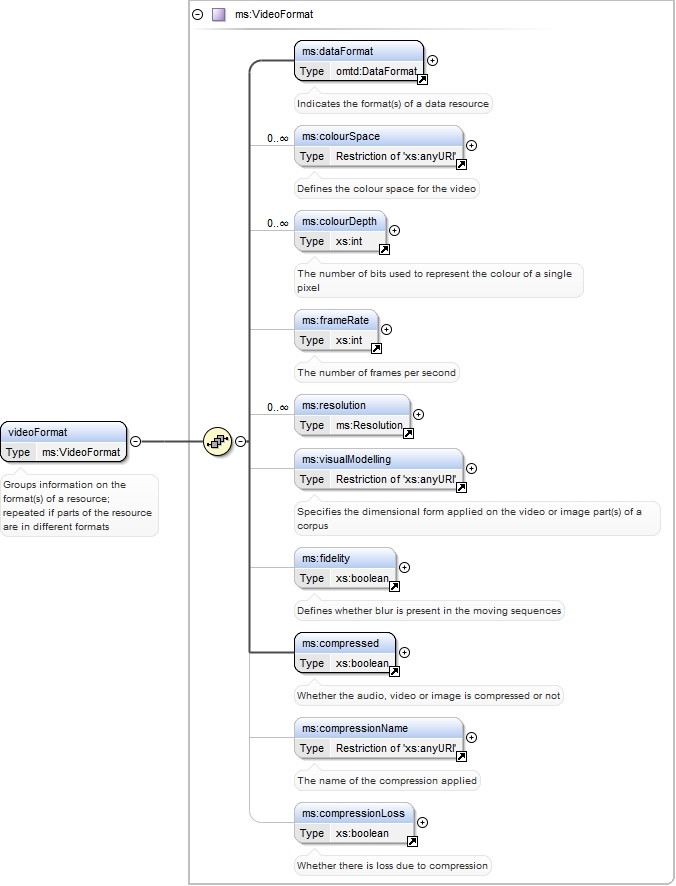

Diagram

Type

ms:VideoFormat

Properties

content

complex

Used by

Complex Type

ms:DistributionVideoFeature

Model

ms:dataFormat , ms:colourSpace* , ms:colourDepth* , ms:frameRate{0,1} , ms:resolution* , ms:visualModelling{0,1} , ms:fidelity{0,1} , ms:compressed , ms:compressionName{0,1} , ms:compressionLoss{0,1}

Children

ms:colourDepth, ms:colourSpace, ms:compressed, ms:compressionLoss, ms:compressionName, ms:dataFormat, ms:fidelity, ms:frameRate, ms:resolution, ms:visualModelling

Instance

<ms:videoFormat xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:dataFormat>{1,1}</ms:dataFormat>
  <ms:colourSpace>{0,unbounded}</ms:colourSpace>
  <ms:colourDepth>{0,unbounded}</ms:colourDepth>
  <ms:frameRate>{0,1}</ms:frameRate>
  <ms:resolution>{0,unbounded}</ms:resolution>
  <ms:visualModelling>{0,1}</ms:visualModelling>
  <ms:fidelity>{0,1}</ms:fidelity>
  <ms:compressed>{1,1}</ms:compressed>
  <ms:compressionName>{0,1}</ms:compressionName>
  <ms:compressionLoss>{0,1}</ms:compressionLoss>
</ms:videoFormat>

Source

<xs:element name="videoFormat" type="ms:VideoFormat">
  <xs:annotation>
    <xs:documentation xml:lang="en">Groups information on the format(s) of a resource; repeated if parts of the resource are in different formats</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/videoFormat</identifier>
      <label xml:lang="en">video format</label>
      <note xml:lang="en">see how data formats, audio & video formats will be handled; must be on distribution</note>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
