Schema documentation for component ms:outputResource

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element ms:outputResource

Namespace

http://w3id.org/meta-share/meta-share/

Annotations

Specifies the output results of a tool/service, i.e. the features of the processed (content) resource

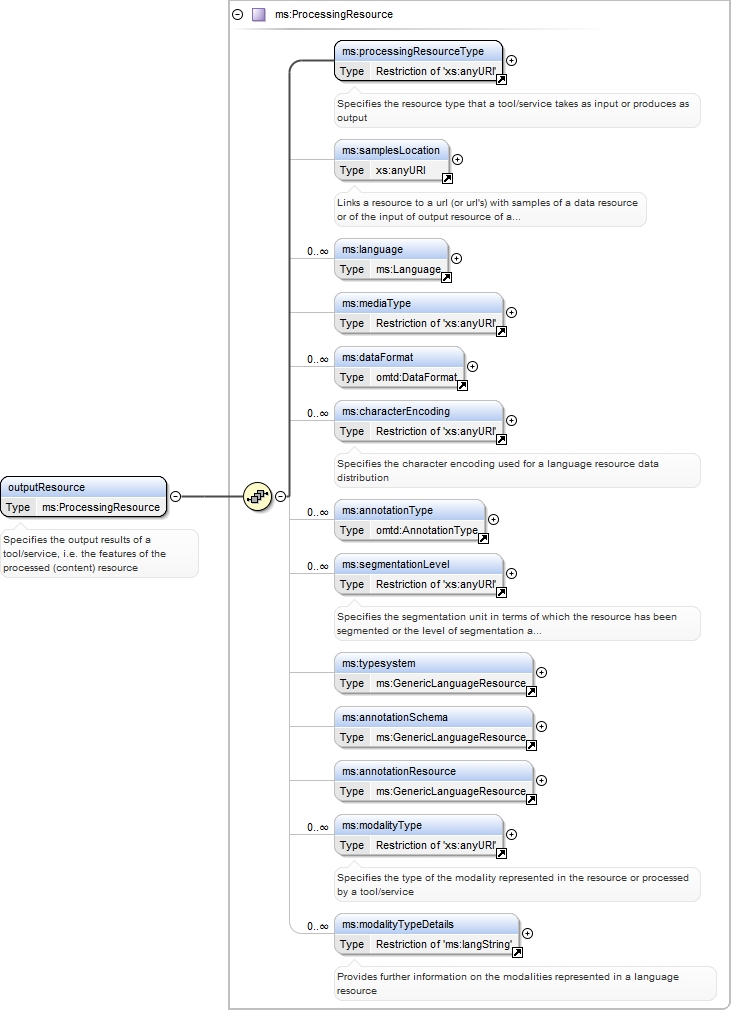

Diagram

Type

ms:ProcessingResource

Properties

content

complex

Used by

Element

ms:ToolService

Model

ms:processingResourceType , ms:samplesLocation{0,1} , ms:language* , ms:mediaType{0,1} , ms:dataFormat* , ms:characterEncoding* , ms:annotationType* , ms:segmentationLevel* , ms:typesystem{0,1} , ms:annotationSchema{0,1} , ms:annotationResource{0,1} , ms:modalityType* , ms:modalityTypeDetails*

Children

ms:annotationResource, ms:annotationSchema, ms:annotationType, ms:characterEncoding, ms:dataFormat, ms:language, ms:mediaType, ms:modalityType, ms:modalityTypeDetails, ms:processingResourceType, ms:samplesLocation, ms:segmentationLevel, ms:typesystem

Instance

<ms:outputResource xmlns:ms="http://w3id.org/meta-share/meta-share/">
  <ms:processingResourceType>{1,1}</ms:processingResourceType>
  <ms:samplesLocation>{0,1}</ms:samplesLocation>
  <ms:language>{0,unbounded}</ms:language>
  <ms:mediaType>{0,1}</ms:mediaType>
  <ms:dataFormat>{0,unbounded}</ms:dataFormat>
  <ms:characterEncoding>{0,unbounded}</ms:characterEncoding>
  <ms:annotationType>{0,unbounded}</ms:annotationType>
  <ms:segmentationLevel>{0,unbounded}</ms:segmentationLevel>
  <ms:typesystem>{0,1}</ms:typesystem>
  <ms:annotationSchema>{0,1}</ms:annotationSchema>
  <ms:annotationResource>{0,1}</ms:annotationResource>
  <ms:modalityType>{0,unbounded}</ms:modalityType>
  <ms:modalityTypeDetails xml:lang="">{0,unbounded}</ms:modalityTypeDetails>
</ms:outputResource>

Source

<xs:element name="outputResource" type="ms:ProcessingResource">
  <xs:annotation>
    <xs:documentation xml:lang="en">Specifies the output results of a tool/service, i.e. the features of the processed (content) resource</xs:documentation>
    <xs:appinfo>
      <identifier>http://w3id.org/meta-share/meta-share/outputResource</identifier>
      <label xml:lang="en">output resource</label>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
